Product Type:

PUMPS / CENTRIFUGAL PUMPS

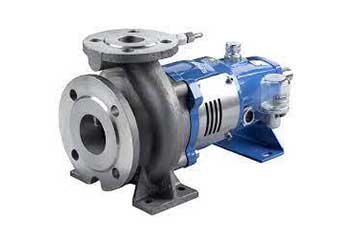

CombiChem represents a range of horizontal centrifugal pumps, designed to ISO 2858 / EN 22858 (DIN 24256), suitable for handling low viscosity, clean or slightly contaminated liquids.

FEATURES

  • Standardized and modular design
  • Flanges according to ISO 7005 PN 16
  • For stainless steel execution 150 lbs ANSI B 16.5 available
  • Outstanding hydraulic performance
  • High efficiency impeller
  • Closed impeller with back vanes providing axial balancing of impeller loads
  • Half open impeller with wear plate and external adjustment
  • Easy maintenance through the Back-Pull-Out principle
  • Single unbalanced / balanced seals to EN 12756 (DIN 24960)
  • Single and double cartridge seals with seal support system
  • Dry-shaft design, pumped liquid not in contact with the shaft
  • 2-Deepgroove ball bearings or double row angular contact thrust bearing and cylindrical roller bearing

SPECIFICATIONS

Casing: Cast iron, Nodular cast iron, Bronze, Stainless steel
Impeller: Cast iron, Bronze, Stainless steel
Max. capacity: 800 m3/h
Max. delivery head: 160 m
Max. liquid temp: 200°C
Max. pressure: 1600 kPa (16 bar)
Max. speed: 3 600 rpm

Application

Low viscosity, clean or slightly contaminated and aggressive liquids transportation in Industrial cleaning machine, Oil purification and flushing system
