Product Type:

PUMPS / CENTRIFUGAL PUMPS

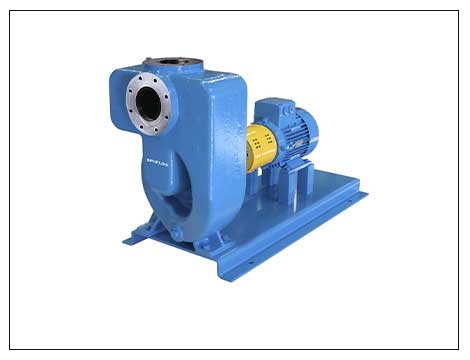

Self-priming centrifugal pumps

FEATURES

  • Excellent self-priming ability
  • No non-return valve required in the inlet
  • Single unbalanced/balanced seals to EN 12756 (DIN 24960)
  • Mechanical seal with dry-running protection through oil bath quench
  • Ideal for handling contaminated liquids
  • Easy maintenance Back-Pull-Out principle
  • Flanges 32 and 40 threaded connection
  • Flange connection 50 and higher to ISO 7005 PN 16
  • Flange connection to ISO 7005 PN 20 (ANSI B16.5 150 lbs) optional
  • Greased for life roller bearings
  • Magnetic drive optional

SPECIFICATIONS

Casing: Cast iron, Bronze, Stainless steel
Impeller: Cast iron, Bronze, Stainless steel
Max. capacity: 350 m3/h (1540 GPM)
Max. delivery head: 80 m (262 ft)
Max. liquid temp: 95°C (203°F)
Max. pressure: 900 kPa (9 bar) (131 psi)
Max. speed: 3 600 rpm
Self-priming: Up to 7 m (Up to 23 ft)

Application

Loading and unloading several liquid in marine industry, waste water aggressive liquid, slurry application
