Product Type:

PUMPS / CENTRIFUGAL PUMPS

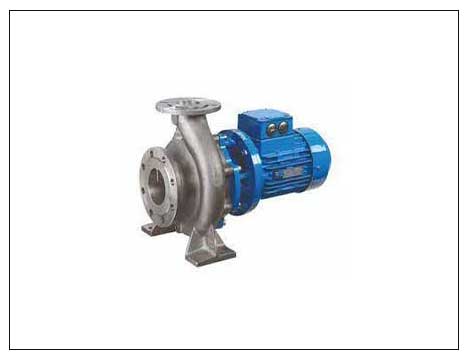

Close-coupled horizontal centrifugal pump to EN 733 (DIN 24255)

FEATURES

  • Compact, economic, space saving construction
  • No shaft alignment required
  • Outstanding hydraulic performance
  • Outstanding hydraulic performance
  • High efficiency impeller
  • Closed impeller with back vanes providing axial balancing of impeller loads
  • Easy maintenance
  • Low maintenance cost
  • Easy to install without heavy foundation
  • Vertical arrangement as an option
  • Standard mechanical shaft seal EN 12756 (DIN 24690)
  • ATEX Certified

SPECIFICATIONS

Casing: Cast iron, Bronze, Stainless steel
Impeller: Cast iron, Bronze, Stainless steel
Max. capacity: 850 m3/h
Max. delivery head: 105 m
Max. liquid temp: 120°C
Max. pressure: 1000 kPa (10 bar)
Max. speed: 3 600 rpm

Application

Low viscosity, clean or slightly contaminated and aggressive liquids transportation in Industrial cleaning machine, Oil purification and flushing system
