Product Type:

PUMPS / CENTRIFUGAL PUMPS

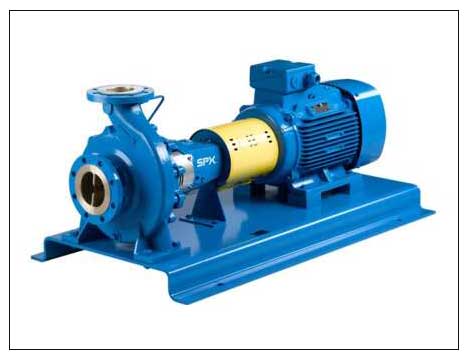

CombiNorm represents a range of horizontal centrifugal pumps suited for handling low-viscosity, clean or slightly contaminated liquids. The pump is designed to EN 733 (DIN 24255).

FEATURES

  • Standardized and modular design
  • Flanges according to ISO 7005 PN 16
  • Outstanding hydraulic performance
  • Closed impeller with back vanes providing axial balancing of impeller loads
  • Easy maintenance through the Back-Pull-Out principle
  • Single unbalanced / balanced seals to EN 12756 (DIN 24960)
  • Single and double cartridge seals with seal support system
  • Dry-shaft design, pumped liquid not in contact with the shaft
  • 2-Deepgroove ball bearings or double row angular contact thrust bearing and cylindrical roller bearing
  • Grease or oil bath lubricated bearings

SPECIFICATIONS

Casing: Cast iron, Nodular cast iron, Bronze
Impeller: Cast iron, Bronze
Max. capacity: 1 500m3/h
Max. delivery head: 140 m
Max. liquid temp: 200°C
Max. pressure: 16 bar (10 bar)
Max. speed: 3 600 rpm

Application

Utility, Irrigation Installation, Agriculture and horticulture, Low presser boiler feed
