Product Type:

PUMPS / CENTRIFUGAL PUMPS

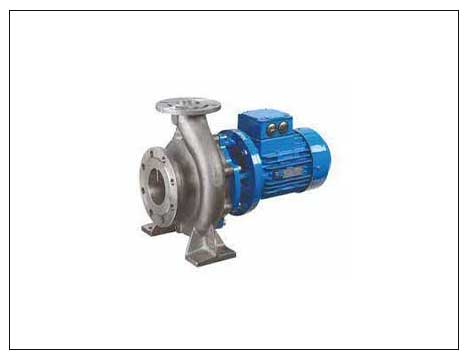

Close-coupled horizontal centrifugal pump to EN 733 (DIN 24255)

FEATURES

Compact, economic, space saving construction
No shaft alignment required
Outstanding hydraulic performance
Outstanding hydraulic performance
High efficiency impeller
Closed impeller with back vanes providing axial balancing of impeller loads
Easy maintenance
Low maintenance cost
Easy to install without heavy foundation
Vertical arrangement as an option
Standard mechanical shaft seal EN 12756 (DIN 24690)
ATEX Certified

SPECIFICATIONS

Casing:	Cast iron, Bronze, Stainless steel
Impeller:	Cast iron, Bronze, Stainless steel
Max. capacity:	850 m³/h
Max. delivery head:	105 m
Max. liquid temp:	120°C
Max. pressure:	1000 kPa (10 bar)
Max. speed:	3 600 rpm

Application

Low viscosity, clean or slightly contaminated and aggressive liquids transportation in Industrial cleaning machine, Oil purification and flushing system
