Product Type:

PUMPS / CENTRIFUGAL PUMPS

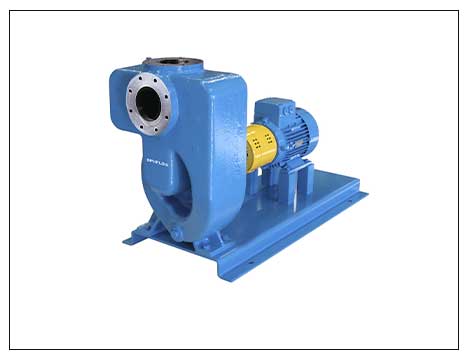

Self-priming centrifugal pumps

FEATURES

Excellent self-priming ability
No non-return valve required in the inlet
Single unbalanced/balanced seals to EN 12756 (DIN 24960)
Mechanical seal with dry-running protection through oil bath quench
Ideal for handling contaminated liquids
Easy maintenance Back-Pull-Out principle
Flanges 32 and 40 threaded connection
Flange connection 50 and higher to ISO 7005 PN 16
Flange connection to ISO 7005 PN 20 (ANSI B16.5 150 lbs) optional
Greased for life roller bearings
Magnetic drive optional

SPECIFICATIONS

Casing:	Cast iron, Bronze, Stainless steel
Impeller:	Cast iron, Bronze, Stainless steel
Max. capacity:	350 m³/h (1540 GPM)
Max. delivery head:	80 m (262 ft)
Max. liquid temp:	95°C (203°F)
Max. pressure:	900 kPa (9 bar) (131 psi)
Max. speed:	3 600 rpm
Self-priming:	Up to 7 m (Up to 23 ft)

Application

Loading and unloading several liquid in marine industry, waste water aggressive liquid, slurry application
