Product Type:

PUMPS / CENTRIFUGAL PUMPS

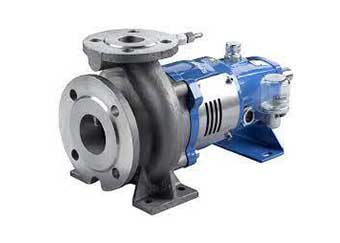

CombiChem represents a range of horizontal centrifugal pumps, designed to ISO 2858 / EN 22858 (DIN 24256), suitable for handling low viscosity, clean or slightly contaminated liquids.

FEATURES

Standardized and modular design
Flanges according to ISO 7005 PN 16
For stainless steel execution 150 lbs ANSI B 16.5 available
Outstanding hydraulic performance
High efficiency impeller
Closed impeller with back vanes providing axial balancing of impeller loads
Half open impeller with wear plate and external adjustment
Easy maintenance through the Back-Pull-Out principle
Single unbalanced / balanced seals to EN 12756 (DIN 24960)
Single and double cartridge seals with seal support system
Dry-shaft design, pumped liquid not in contact with the shaft
2-Deepgroove ball bearings or double row angular contact thrust bearing and cylindrical roller bearing

SPECIFICATIONS

Casing:	Cast iron, Nodular cast iron, Bronze, Stainless steel
Impeller:	Cast iron, Bronze, Stainless steel
Max. capacity:	800 m³/h
Max. delivery head:	160 m
Max. liquid temp:	200°C
Max. pressure:	1600 kPa (16 bar)
Max. speed:	3 600 rpm

Application

Low viscosity, clean or slightly contaminated and aggressive liquids transportation in Industrial cleaning machine, Oil purification and flushing system
