Product Type:

PUMPS / CENTRIFUGAL PUMPS

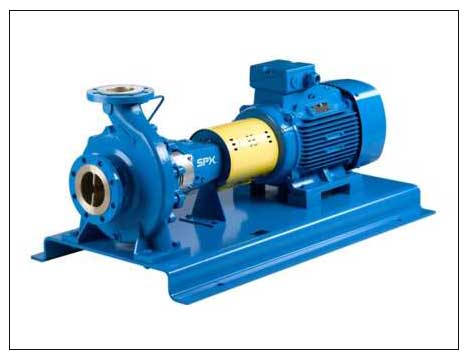

CombiNorm represents a range of horizontal centrifugal pumps suited for handling low-viscosity, clean or slightly contaminated liquids. The pump is designed to EN 733 (DIN 24255).

FEATURES

Standardized and modular design
Flanges according to ISO 7005 PN 16
Outstanding hydraulic performance
Closed impeller with back vanes providing axial balancing of impeller loads
Easy maintenance through the Back-Pull-Out principle
Single unbalanced / balanced seals to EN 12756 (DIN 24960)
Single and double cartridge seals with seal support system
Dry-shaft design, pumped liquid not in contact with the shaft
2-Deepgroove ball bearings or double row angular contact thrust bearing and cylindrical roller bearing
Grease or oil bath lubricated bearings

SPECIFICATIONS

Casing:	Cast iron, Nodular cast iron, Bronze
Impeller:	Cast iron, Bronze
Max. capacity:	1 500m³/h
Max. delivery head:	140 m
Max. liquid temp:	200°C
Max. pressure:	16 bar (10 bar)
Max. speed:	3 600 rpm
