ANTICO PUMPS Chemical Process Transfer Pump Leader: As India's largest manufacturer of Non Metallic Chemical Process pumps, Antico's pumps deliver reliability ease of use and maintenance to more than 1000 companies in varied industries.

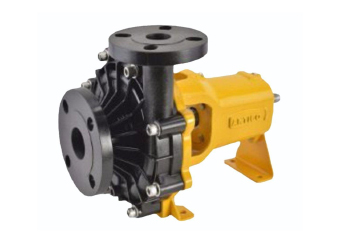

NS SERIES:

NS Series pumps are injection moulded, horizontal, side discharge, back pull-out, volute casing type, single stage, end suction centrifugal pumps. NS Series pumps are specifically designed to pump general chemicals up to specific gravity of 1.3 best suited for electroplating, filtration, scrubbing, loading and unloading applications.

SPECIFICATIONS

MOC:	PP/GFRPP/CFRPVDF
Maximum capacity:	Upto 30 m3/hr
Maximum Head:	Upto 30 m
Maximum Viscosity:	80 cp
Specific gravity:	Upto 1.3

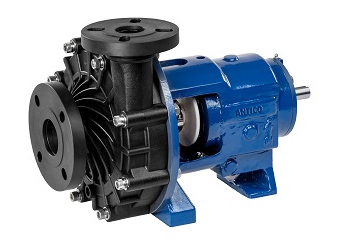

NZ SERIES:

NZ Series long-coupled thermoplastic mechanical seal process pump provides the most economical, combinatorial design which simplifies maintenance, reduces inventory, is able to give a near constant head for a wide flow range. NZ pumps are injection moulded, horizontal, side discharge, back pull-out, volute casing type, single stage, end suction centrifugal pumps. MOC: GFPP | CFRPVDF

SPECIFICATIONS

MOC:	PP/GFRPP/PVDF/ETFE
Maximum capacity:	Upto 40 m3/hr
Maximum Head:	Upto 38 m
Maximum Viscosity:	150 cp
Specific gravity:	Upto 1.8 to 3

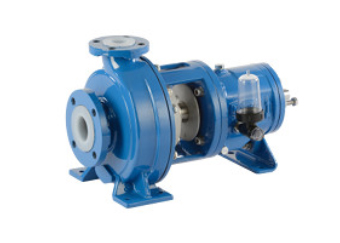

NJ SERIES:

NJRP Series pumps are injection moulded, horizontal, back pull-out, volute casing type, single stage, center line discharge, end-suction centrifugal pumps. Cast iron frames with the injection moulded wetted parts are designed to withstand high flange loads and pressures.

SPECIFICATIONS

MOC:	PP/GFRPP/PVDF/PFA LINE
Maximum capacity:	Upto 210 m3/hr
Maximum Head:	Upto 100 m
Maximum Viscosity:	150 cp
Specific gravity:	Upto to 3

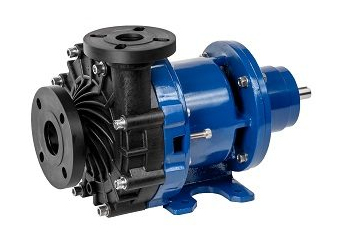

MZ SERIES:

MZ pumps are injection moulded, non-metallic, magnetic drive, long & close coupled, horizontal, side discharge, single stage, end suction centrifugal pumps with rotary shaft design to surpass performance expectation in the most demanding chemical applications and environments.

SPECIFICATIONS

MOC:	PP/GFRPP/PVDF/PFA LINE
Maximum capacity:	Upto 40 m3/hr
Maximum Head:	Upto 38 m
Maximum Viscosity:	150 cp
Specific gravity:	Upto to 3
