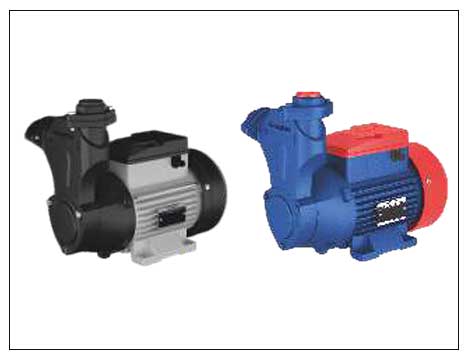

Mini - Turbofill Self Priming Regenerative Pumps

Technical Specifications

  • 0.5 HP & 1 HP (0.37kW & 0.75kW)
  • Rated voltage: 220V
  • IP 55 Protection: High Protection from water splashing & solid particle
  • Voltage range: 180V-260V (1PH)
  • Rated Frequency: 50Hz
  • Pipe size: 25mm X 25mm
  • Max. head: Up to 50 meters
  • Max. discharge: Up to 4250 LPH
  • Liquid: Clear & Cold Water

Application

  • Water supply to residential bungalows, garages, flats, dairies, hotels, laundries, club, hospitals, etc.
  • Gardening
  • Lawn sprinklers
  • Ornamental fountains
  • Water feeding in solar system
  • Booster applications

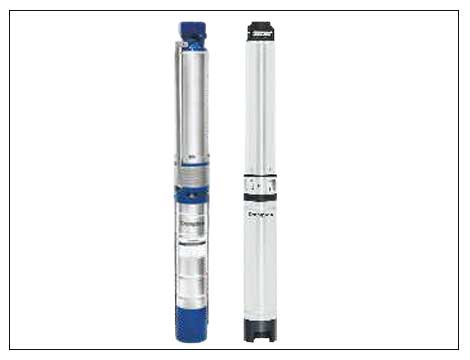

Borewell Submersible Water filled Pumps

Technical Specifications

  • Range: 0.5 HP to 2.0 HP (0.37 kW to 1.5 kW)
  • Rated voltage: 220V for 1PH & 415V for 3PH
  • Voltage range: 160V-240V for 1PH & 350V-440V for 3PH
  • Rated Frequency: 50Hz
  • Delivery pipe size: 32 mm to 50 mm
  • Max. Head: Upto 200 meter
  • Max. Discharge: Upto 150 LPM
  • Liquid: Clear water
  • Motor type: Water filled motor

Application

  • Gardening
  • Sprinkler irrigation
  • Multistoried buildings
  • Water supply for industrial
  • Drip irrigation
  • Construction sites
  • Farm Houses

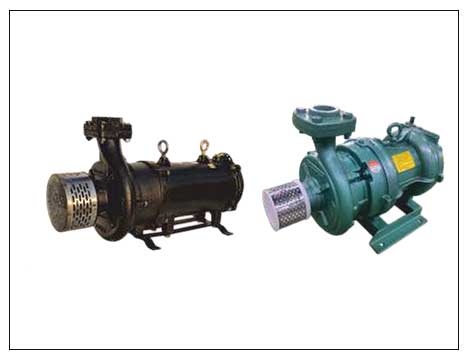

Openwell Submersible Pumps

Technical Specifications

  • Rated voltage: 220V for 1 PH
  • Voltage range: 160 -240V
  • Rated Frequency: 50Hz
  • Delivery pipe size: 25 mm
  • Max. Head: Upto 34 meter
  • Max. Discharge: Upto 180 LPM
  • Motor type: Water filled motor

Application

  • Water transfer from under ground tank to overhead tank
  • Water supply in hotels, buildings & apartments
  • Gardening & water fountains

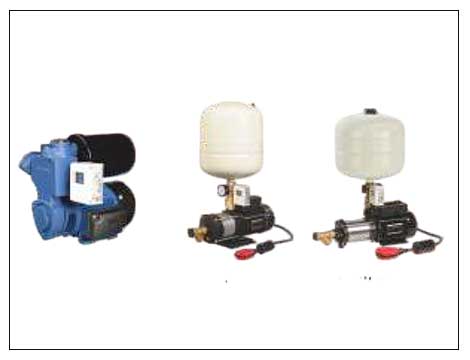

Pressure Booster Pumps

Technical Specifications

  • Range : 0.5 HP to 1.5 HP (0.37kW to 1.1 kW)
  • Rated Voltage : 220V 1PH
  • Voltage Range : 180V - 260V
  • Rated Frequency: 50Hz
  • Pipe Size : 25mm X 25mm, 32mm X 25mm
  • Max. head : Up to 56 Meters
  • Max. Discharge : Up to 132LPM
  • Liquid : Clear & Cold Water
  • Rotation : clockwise as viewed from Motor End

Application

  • Domestic pressure boosting applications in bungalows, apartments, hotels, etc.
  • For constant pressure application in industries

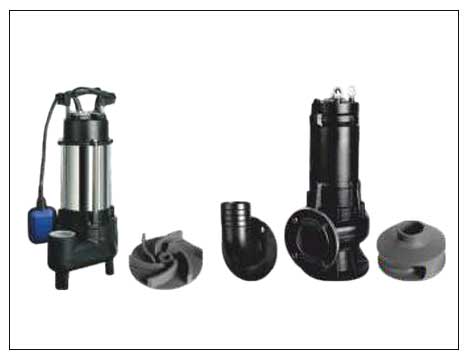

Sewage Submersible Pumps

Technical Specifications

  • Range: Up to 5.5Kw/7.5HP
  • Rated Voltage: 220V
  • Voltage Range: 160-260V
  • Rated Frequency: 50Hz
  • Pipe size: 50 &100mm
  • Max. Head: Up to 22m
  • Max. Discharge: Up to 1500 LPM

Application

  • Construction Sites
  • Hotels and restaurants
  • Sewage treatment plants
  • Wastewater treatment plants

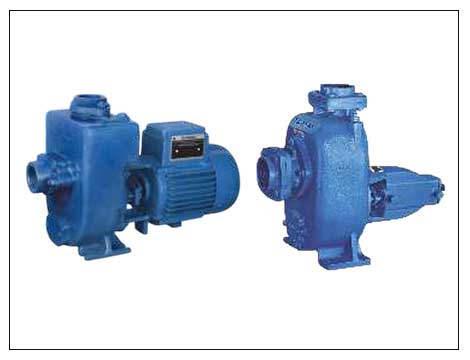

Dewatering Monobloc Pumps

Technical Specifications

  • Power range: 0.75 to 18.7kW (1 to 25HP)
  • Rated voltage: 415V for 3 PH & 225V for 1PH
  • Pipe size: 40X40 mm to 150X150 mm
  • Speed: 1450/2900 rpm
  • Rated Frequency: 50Hz
  • Total Head: Up to 36m
  • Capacity: Up to 4310 LPM
  • Solid Handling capacity: Up to 40mm
  • Motor: Degree of Protection - Ip54
  • Motor: Class of Insulation - B

Application

  • Effluent Treatment Plants
  • Transfer of Petroleum products, Chemicals, Treated / Raw water
  • Ash water in Thermal Power Plants
  • Waste Liquid in Tiles & Marble factories
  • Civil construction sites
  • Swimming pool filtration
  • Dewatering of Basement water & trenches
  • Pumping water from docks, ports, vessels
  • Dewatering
