PRICE complete line of metallic and non-metallic AODD pumps, offered in a wide range of sizes and flow rates makes pumping convenient. We provide the highest quality AODD pumps to our customers with an assurance of reliability, hassle-free delivery and durability.

AODD pumps are widely used for their safe and effective handling of fluids of varying viscosities. This makes it a versatile solution with various applications which is also cost-effective.

  • No electrical motor- non sparking
  • No mechanical seals or gland packing
  • Self-priming
  • Ability to deadhead safely without damage
  • The pumps can run dry indefinitely without damage
  • Does not need electricity, operates on compressed air
  • Initial purchasing price is less in comparison to other pumps
  • Performs well even when completely submerged
  • Pressure upto 100 psi (7 bar)
  • Variable flow and head pressure
  • No close fittings, sliding or rotating parts so can handle a wide range of fluids
  • with high solid content

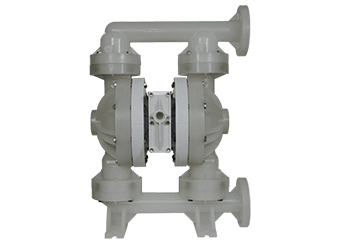

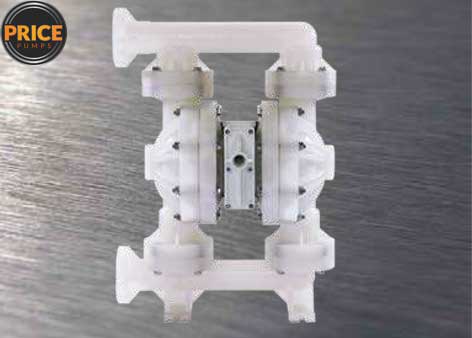

NON METALLIC PUMPS

SPECIFICATIONS

Available Sizes- ¼ "BSP (6.35 mm)
½" BSP (15 mm)
1" BSP (25 mm)
1-1/2" BSP (40 mm)
2" BSP (50 mm)
3" BSP (80 mm)
Wetted Material- Polypropylene
PVDF
ETFE
Elastomers- Teflon Santoprene neoprene Buna N Hytrel Polyurethane Viton EPDM
Performance:
Max Pressure Upto-
Max Flow Rate -
Max size Solid -
7 kg/cm2
999 Ipm (59 m3/hr)
13 mm

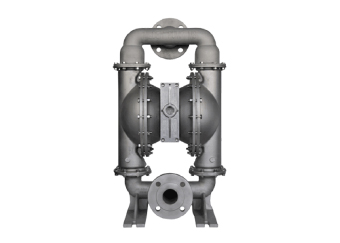

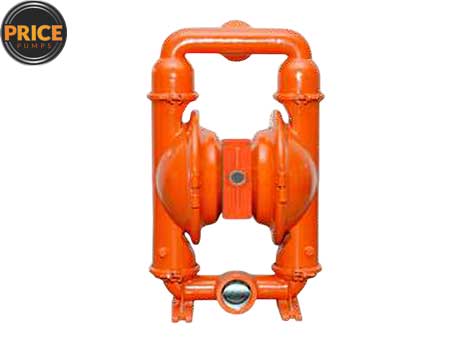

SPECIFICATIONS

Available Sizes- ¼ "BSP (6.35 mm)
½" BSP (15 mm)
1" BSP (25 mm)
1-1/2" BSP (40 mm)
2" BSP (50 mm)
3" BSP (80 mm)
Wetted Material- Stainless steel
Ductile Iron
Aluminium
Elastomers- Teflon Santoprene neoprene Buna N Hytrel Polyurethane Viton EPDM
Performance:
Max Pressure Upto-
Max Flow Rate -
Max size Solid -
7 kg/cm2
900 Ipm (54 m3/hr)
13 mm
